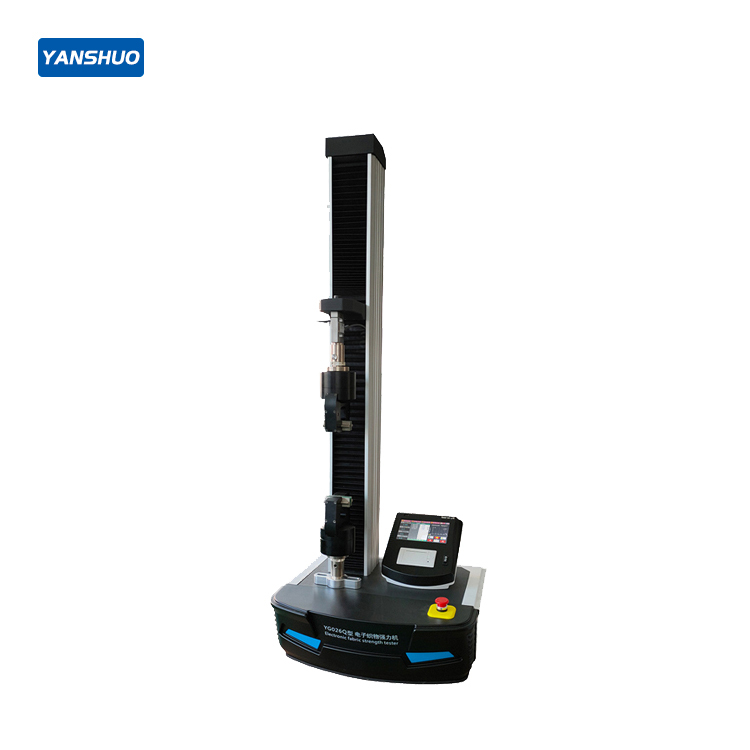

【Instrument Features】

1. Instrument columns made of aluminum alloy profiles with oxidation treatment for scratch resistance.

2. Utilizes Philips 32-bit industrial-grade microcontroller control and an 18-bit A/D converter from Analog Devices (USA), offering strong anti-interference capability and extremely fast data processing and transmission.

3. Dynamic sampling frequency exceeds 1000 times/sec, effectively capturing peak data values accurately during testing.

4. Touchscreen LCD operation with full Chinese menu; built-in printer for direct report output; simple operation.

5. PC online control for dynamic tracking of instrument status; transmits test data and displays strength-elongation curves in real-time.

6. Pneumatic clamping, AC servo control system drive, ball screw transmission, ultra-quiet operation.

7. Built-in automatic digital force calibration system.

8. Integrated test function design with open data connection interface enables multi-purpose use.

9. Force units: CN, N, Kg, lb, etc., freely convertible.

10. Equipped with overload, over-travel, over-voltage, and other protections to ensure safe operation.

【Technical Parameters】

1. Force Range: 30kg; 50kg; 100kg; 250kg; Full Scale 1～100% (Optional)

2. Force Accuracy: ≤±0.2% F.S.;

3. Tensile Speed: 1～1000 mm/min (Arbitrarily Set);

4. Return Speed: 1～1000 mm/min (Arbitrarily Set);

5. Sampling Frequency: >1000 times/sec;

6. Elongation Resolution: ≤0.01 mm;

7. Effective Stroke: 600mm (Pneumatic Clamp); 650mm (Manual Clamp);

8. Power Supply: AC220V±10%;

9. Power: 500W;

10. Dimensions: 500×470×1460mm;

11. Net Weight: 105kg.
